A structural stainless-steel job can fail before welding begins if the purchase request says only “stainless electrode.” You need to identify the base metal and joint, select a compatible AWS classification, then control documents, welding variables, storage and inspection so the consumable suits the actual service.
Key takeaways
- Define the joint, base metals, service conditions and governing code first.
- Match the electrode classification to the stainless grade and corrosion service.
- Request batch traceability, certificates and clear package markings before purchase.
- Protect electrodes from moisture and compare suppliers on documentation, not price alone.
Define the structural joint before you request an electrode
A structural joint is the connection carrying a defined load in a frame, platform, ladder, tank, pipe support or mixed-material assembly. For stainless steel welding for electrode requirements in Mumbai, the city does not decide the classification; the base metals, joint design, service environment, welding process and governing code do.
Before requesting an electrode, record:
- Stainless grade and condition, such as 304L, 316L or duplex 2205; identify carbon or low-alloy steel on the opposite side.
- Joint type, thickness range, root gap, weld size, access, welding position and backing arrangement.
- Loads, design temperature, chloride or chemical exposure, immersion, abrasion and required corrosion performance.
- Welding process, applicable WPS/PQR route, welder qualification and project code, such as AWS D1.6 or a specified Indian, ISO or EN standard.
- Required electrode classification, diameter, current and polarity, inspection method, acceptance criteria and certificates.
- Batch identification, manufacturer’s conformity certificate, dimensions, coating type, recommended settings and any specified ferrite or corrosion-test data.
| Joint definition | What to establish | Why the request changes |
|---|---|---|
| Stainless to stainless | Both grades and service exposure | E308L-16 and E316L-16 serve different corrosion environments |
| Stainless to carbon or low-alloy steel | Carbon-steel grade, dilution and service temperature | A dissimilar-metal classification and qualified WPS may be necessary |
| Duplex or unknown steel | Exact chemistry, ferrite needs and positive material identification | Do not select by tensile strength or guess the grade |
Unknown steel requires testing or documented identification before procurement. An electrode label cannot correct an unidentified base metal or an unqualified joint.
Match the electrode classification to the stainless grade and service
E308L-16 is the usual starting point for 304 or 304L stainless-to-stainless joints; E316L-16 fits 316 or 316L where molybdenum is needed for chloride and chemical-service corrosion resistance. Neither choice is automatic: confirm the grade, service temperature, corrosion exposure, dilution and WPS before ordering.
| Classification | Suitable joint or service | When it is wrong |
|---|---|---|
| E308L-16 | 304/304L stainless frames, platforms and general fabrications | Wrong for 316 chloride service, duplex steel or high-temperature 310 service |
| E316L-16 | 316/316L stainless exposed to chlorides or chemical environments | Wrong when the base metal is 304, duplex or an unidentified alloy; higher tensile strength alone does not make it suitable |
| E309L-16 | Stainless-to-carbon-steel or stainless-to-low-alloy-steel joints | Wrong for duplex joints or as a universal stainless filler; dilution and service corrosion still require WPS approval |
| E310 | 310/310S stainless and elevated-temperature oxidation service | Wrong for ordinary 304 or 316 structures, duplex steel or wet chloride service |
| E2209 | 2205-type duplex stainless joints requiring balanced austenite-ferrite weld metal | Wrong for 304L or 316L simply because all are stainless; heat input and interpass limits are essential |
A request for an e2209 welding electrode in mumbai still needs the duplex grade and qualified heat-control limits. Excessive heat can create intermetallic phases; rapid cooling can reduce austenite. For an unknown steel, stop and identify it before selecting any classification.
Read the package marking and request the right certificates
An E308L-16 marking identifies a covered electrode classification under AWS A5.4; it does not, by itself, approve a structural joint. Read the complete pack label for the AWS specification, classification, electrode diameter, manufacturer, lot or batch number, coating type, recommended current and polarity, and position capability.
For stainless steel welding electrodes in Mumbai, request documents that connect the delivered box to the specified job:
- A manufacturer’s certificate of conformity stating compliance with AWS A5.4 and the declared classification.
- A batch certificate showing the lot number, chemical requirements and mechanical requirements for the deposited metal.
- The packing list or certificate showing electrode dimensions and quantity, with intact, dated packaging.
- Deposited-metal ferrite results or corrosion-test data when the WPS, service environment or owner specification calls for them.
- Storage and rebaking instructions that match the electrode coating and the site’s consumable-control procedure.
“AWS approved” is incomplete wording unless the supplier names AWS A5.4 and the classification. AWS A5.9 covers bare rods and wires, while AWS A5.22 covers flux-cored corrosion-resisting electrodes; neither marking proves that a covered SMAW electrode is supplied.
Match the certificate to the qualified WPS/PQR, qualified welder, joint details and inspection criteria required by the contract. AWS D1.6 may govern stainless structural work, but an Indian, ISO, EN or owner standard can replace it. Missing batch traceability or a mismatch between the box and WPS is a procurement failure, not a paperwork detail.
Set welding variables and protect the consumable at the worksite
Choose electrode diameter from joint thickness, root gap, welding position and access, not from tensile strength. Use a smaller diameter for root passes, thin sections and overhead work; use larger electrodes only where the WPS permits their deposition rate. Set amperage from the electrode manufacturer’s data sheet and qualified WPS.
| Variable | Set it by | Why it matters |
|---|---|---|
| Polarity | Complete classification, such as E2209-15, E2209-16 or E2209-17, plus the WPS | Suffix changes current type, arc behaviour, position capability and slag release |
| Arc length | Keep it short and steady | A long arc increases spatter, atmospheric contamination and undercut |
| Travel and heat | Control travel speed, amperage and interpass temperature | Excess heat distorts stainless and can reduce corrosion or duplex performance |
Use stringer beads unless the WPS permits weaving. Clean each bead, keep the arc in the molten pool, and stagger stops and starts. Measure interpass temperature with a contact thermometer; do not guess by colour. Follow the qualified heat-input and interpass limits rather than applying one universal temperature.
Protect electrodes from moisture: keep sealed containers closed until issue, use a controlled holding oven after opening when the manufacturer requires it, and redry only at the specified temperature and time. Repeated uncontrolled baking damages coatings.
- Remove oil, paint, scale and moisture before welding.
- Use dedicated stainless brushes, wheels and benches; carbon-steel particles can rust the surface.
- Specify mechanical cleaning, pickling or passivation after welding according to alloy, service and project requirements.
Compare Mumbai suppliers on traceability, not price alone
A low-priced box is a poor bargain if its batch cannot be traced after a weld fails inspection. Compare each stainless steel electrode supplier in Mumbai on evidence that links the delivered electrodes to a manufacturer, classification and production lot.
| Source | Evidence to demand | Risk to control |
|---|---|---|
| Manufacturer | Manufacturer certificate of conformity, lot number and direct technical contact | Confirm the certificate matches the box marking |
| Authorised distributor | Authorisation evidence, sealed manufacturer packaging and replenishment records | Check that every delivery comes from a traceable lot |
| Trader | Original certificates, purchase trail and storage records | Reject stock with relabelled, damaged or undated packaging |
Request these items before issuing the purchase order:
- Batch or lot number matching the box, certificate and delivery note
- AWS A5.4 classification, diameter, coating type, recommended current and polarity
- Chemical and mechanical results, plus ferrite or corrosion-test data when the specification requires them
- Packaging date, intact seals and storage conditions; damp electrodes can produce porosity, hydrogen-related cracking or unstable arcs
- Written confirmation that the supplier can provide the same classification and diameter throughout fabrication
Technical support also matters. Ask whether the supplier can review your qualified WPS, joint materials, position and heat-control limits rather than simply quote “stainless electrodes.” RND Welding Pvt Ltd can be assessed on that same evidence: batch continuity, certificates and practical support, not catalogue breadth.
A supplier who cannot preserve lot identity should not serve a repeatability-critical structural project, regardless of price.
Related products

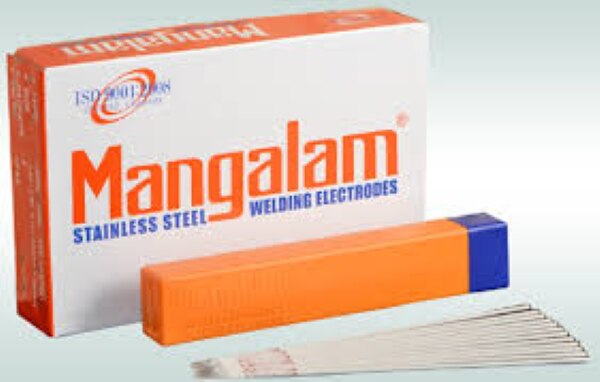

 | Stainless Steel Welding Electrodes Mangalam E308L-16 Stainless Steel Welding Electrodes ₹ 330/KgGet Latest Price Size 3.15 mm Material Stainless Steel Length 350 mm Brand Mangalam Model Name/Number E308L-16 Packaging Type Box Material... View product → |
 | Stainless Steel Welding Electrodes ₹ 130/KgGet Latest Price Size/Diameter 2.5 mm Material Mild Steel Brand Ador Size 2.5 mm Length 350 mm Application/Usage Construction We are leading... View product → |
Frequently asked questions
What information should you provide before requesting a stainless steel welding electrode?
Provide the base-metal grades, joint design, thickness, service environment, welding position, process and governing code. Include whether the joint carries structural, pressure, temperature or corrosion-critical loads.
How do you match an electrode classification to stainless steel?
Match the electrode to the stainless grade, required weld-metal chemistry, mechanical properties and service environment. For duplex stainless steel, check whether an E2209 classification is specified by the welding procedure and design requirements.
Which package markings and certificates should you check?
Check the AWS classification, manufacturer, diameter, batch or heat number, manufacturing date, storage instructions and applicable standard. Request a certificate of conformance and a mill test certificate when project specifications require chemical and mechanical results.
How should stainless steel electrodes be stored and handled at a Mumbai worksite?
Keep electrodes sealed until use, store them in a dry area and follow the manufacturer’s rebaking and holding-temperature instructions. Record issue time and exposure when the welding procedure controls moisture or hydrogen.
How should you compare stainless steel electrode suppliers in Mumbai?
Compare classification accuracy, batch traceability, certificates, stock condition, storage controls, delivery reliability and technical support. Price matters after the supplier proves that the electrode matches your approved welding procedure.
